Optimized Gate Cooler Cylinders for High-Temperature Cement Clinker Cooling – Custom Solutions from Xuanda

CHANGZHOU, JIANGSU, CHINA, October 19, 2026 /EINPresswire.com/ -- Rapid clinker cooling and thermal recuperation efficiency across modern dry-process cement clinker lines—spanning mainstream commercial operations to heavy-capacity megaplants—depend on the uninterrupted reciprocating motion of mechanical grate coolers. Positioned directly beneath the rotary kiln discharge hood, hydraulic drive actuators endure intense ambient thermal radiation up to 120 degrees Celsius while delivering continuous high-frequency reciprocating propulsion at 4 to 20 cycles per minute amidst abrasive clinker dust. To maintain continuous reciprocating propulsion and protect hydraulic assemblies from thermal degradation under severe thermal radiation, Changzhou Xuanda Hydraulic Electromechanical Equipment Co., Ltd. (Xuanda) constructs customized hydraulic cylinders for cement grate coolers utilizing high-temperature FKM sealing matrixes and self-aligning spherical eye mounts rated for 120°C radiative heat zones. Designed with specialized heat-resistant polymer seals and self-aligning spherical clevis mounts, these heavy-duty cylinders stabilize movable grate bed kinematics, support uniform clinker bed aeration, and maintain operational continuity throughout multi-year production campaigns.

High-Temperature FKM Fluoroelastomer and PTFE Composite Sealing Mechanisms

Ambient thermal exposure exceeding 100 degrees Celsius accelerates polymer degradation in standard nitrile butadiene rubber (NBR) and conventional polyurethane seals, causing cross-link hardening, thermal embrittlement, and rapid loss of elastic pre-load. Inside grate cooler hydraulic drives, this thermal hardening leads to seal lip cracking and internal fluid bypass during continuous high-frequency cycling. To maintain elastic contact pressure under sustained 120 degrees Celsius radiative heat, Xuanda constructs its dynamic sealing configurations using premium fluoroelastomer (FKM) compounds combined with modified carbon-filled PTFE step seals. FKM elastomers maintain structural elasticity, thermal stability, and low compression set under sustained elevated temperatures, while bronze-filled PTFE slide rings provide self-lubricating sliding contact with low friction coefficients (μ < 0.03). In addition, secondary metal-cased fluoroelastomer wiper seals remove fine clinker dust before particulates reach the primary pressure stage. This multi-stage composite sealing configuration prevents stick-slip motion, maintains hydrodynamic oil film stability, and preserves closed-loop fluid purity under continuous 4 to 20 cycles per minute reciprocating speeds without thermal degradation.

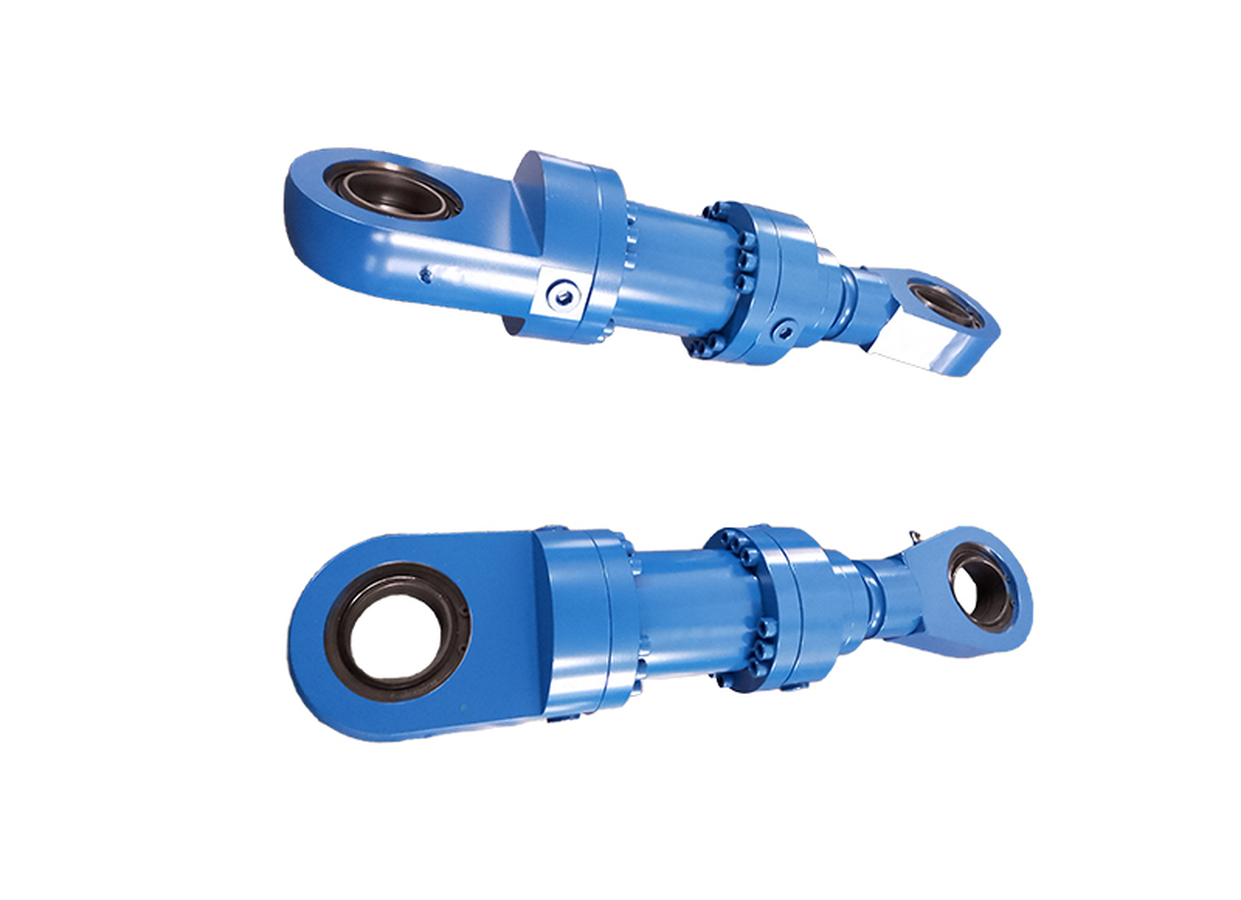

Spherical Plain Bearing Clevis Mountings for Grate Bed Angular Compensation

Movable grate frames spanning several meters across clinker cooling chambers experience severe asymmetrical thermal expansion and lateral mechanical shifting as clinker cakes distribute unevenly across the cooling floor. Rigidly bolted hydraulic cylinders subjected to these frame misalignments encounter severe transverse bending moments, which accelerate rod bushing wear, score piston rod coatings, and deform rod gland packings. Xuanda resolves these multi-axis force vectors by incorporating self-aligning spherical plain bearings directly within both the cylinder rod eye and rear base clevis forgings. These precision spherical bearings feature maintenance-free PTFE composite liners that accommodate angular misalignments of plus or minus 3 to 5 degrees during full-stroke extension and retraction cycles. Standardized with original-equipment double-earring (clevis-eye) pin configurations, these mounting interfaces isolate structural frames against strong alternating lateral loads and continuous cooling-grate vibration. Transverse bending forces convert into pure axial mechanical thrust along the cylinder centerline, precluding rod deflection and preserving uniform radial clearance between the piston rod and extended bronze guide bushings.

High-Thrust Kiln Hood Snowman Clearing Cylinders with Fast Actuation

Molten clinker falling directly from the rotary kiln discharge zone onto the inlet grate section frequently forms dense, solidified agglomerates known in cement manufacturing as snowman formations. If left uncontrolled, these massive hot clinker deposits obstruct primary cooling airflow, disturb clinker discharge flow, and destabilize kiln hood thermal balances. Complementing primary grate-bed reciprocating drive cylinders, Xuanda manufactures heavy-duty double-acting snow-pushing cylinders engineered to deliver high instantaneous breakout thrust to shatter and dislodge solidified clinker crusts. Constructed with reinforced 42CrMo structural steel forged barrels and high-rigidity alloy piston rods, these specialized clearing actuators provide rapid forward acceleration, elevated thrust capacity, and steady high-pressure holding capability. Integrated valve manifold blocks mount directly onto the cylinder barrels, housing proportional directional valves and nitrogen bladder accumulators to deliver fluid response times within milliseconds while absorbing sudden mechanical shock reactions when clearing dense clinker obstructions.

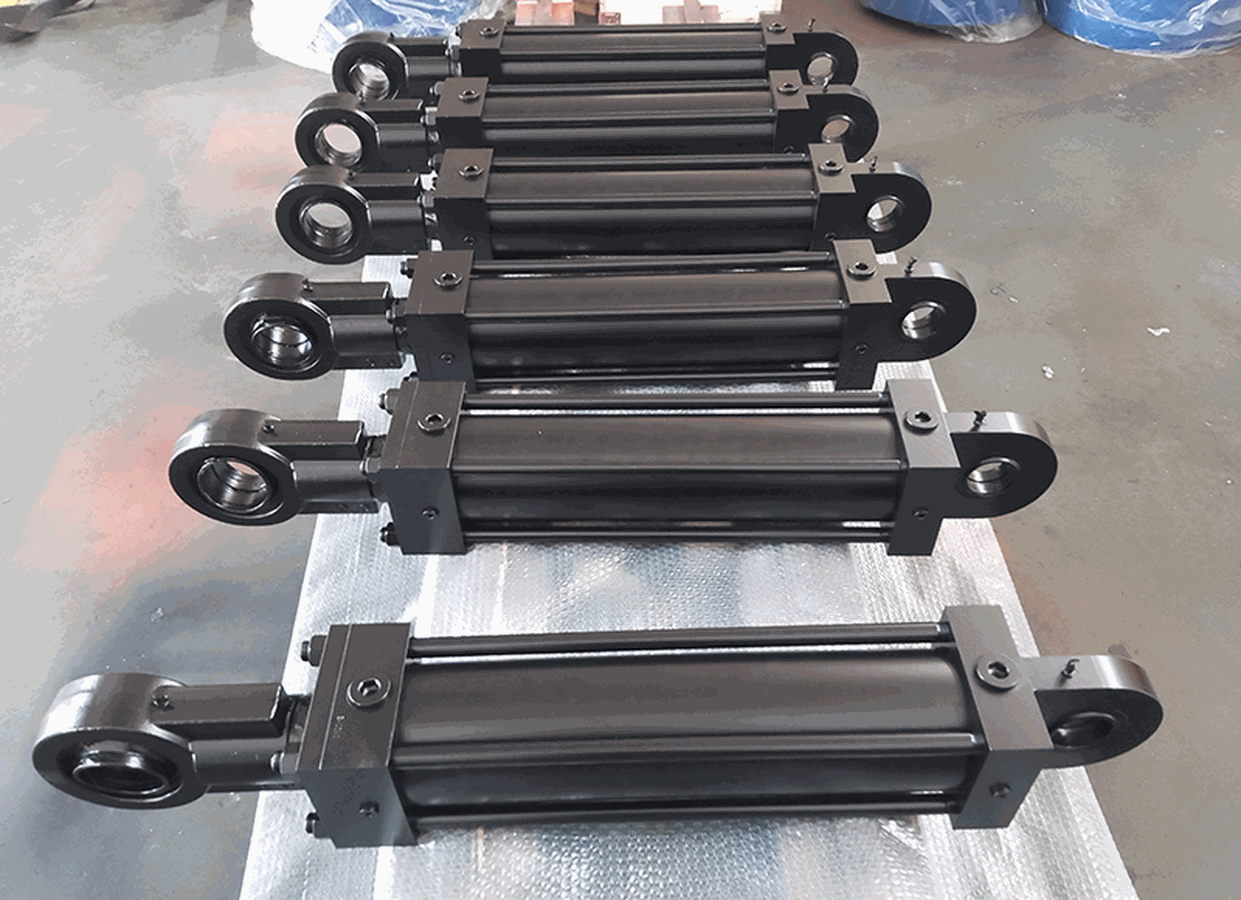

Precision OEM Dimensional Interchangeability Across 2000t/d to 12000t/d Clinker Lines

Modern cement production facilities utilize diverse grate cooler designs across production capacities ranging from 2000 t/d regional plants up to 12000 t/d mega-scale pyroprocessing lines. Standardizing replacement components across multiple kiln lines requires precise dimensional adherence to original equipment manufacturer drawings. Xuanda maintains an extensive engineering archive covering mounting center distances, spherical bearing bore tolerances, stroke limits, operating pressures, and port locations for leading domestic and international grate cooler models, including IKN, Claudius Peters, and FLSmidth Cross-Bar systems. Internal cylinder bores are finished on an advanced American SUNNEN HTH-6001S horizontal CNC honing machine, producing continuous single-pass bore accuracy up to 6 meters with roundness within 0.003 mm and surface roughness between Ra 0.02 µm and Ra 0.2 µm. Cylindrical piston rod surfaces receive precision CNC grinding, specialized laser cladding, and multi-layer hard chrome plating to attain surface hardness exceeding HRC 60, resisting clinker dust abrasion. Maintenance crews install these replacement cylinders directly into existing cooling machine foundations without field cutting, torching, or structural adjustments.

Long-Term Operational Efficiency and Direct Factory Engineering Value

Deploying specialized heat-resistant hydraulic cylinders on clinker grate coolers delivers direct operational returns by stabilizing kiln secondary air temperatures, enhancing heat recovery efficiency, and supporting continuous clinker transport. Sourcing hydraulic cylinders directly from an integrated manufacturer removes intermediary trading margins, enables direct engineering dialogue for custom mounting requirements, and compresses manufacturing lead times for scheduled kiln shutdown overhauls. Xuanda operates in full compliance with ISO 9001:2015 quality management systems, while mechanical designs align with European CE machinery directives, ASME pressure containment codes, and EN ISO 13849 safety performance levels. Every grate cooler cylinder undergoes 100% factory verification on full-scale hydraulic test stands, including 1.5-times proof pressure testing to confirm structural containment and zero internal bypassing prior to dispatch. Complete material test certificates, ultrasonic forging inspection reports, dimensional inspection sheets, and high-temperature seal replacement packages accompany every delivery, supporting dependable cement clinker cooling worldwide.

Cement plant engineering directors and clinker production managers seeking customized, heat-resistant grate cooler hydraulic cylinders can access technical specification sheets, dimensional drawings, and direct factory quotation requests through the official international portal: https://www.xuandahydraulic.com/
